CONVERTER HEAT DISSIPATION
VFD is a kind of power control equipment which USES frequency conversion technology and microelectronic technology to control ac motor by changing the working power frequency of the motor. It is mainly composed of rectifier (ac to dc), filter, inverter (dc to ac), brake unit, drive unit, detection unit and micro-processing unit. VFD relies on the cut-off of internal IGBT to adjust the output power supply voltage and frequency. According to the actual needs of the motor to provide its required power supply voltage, then achieve the purpose of energy saving, speed regulation.
IGBT model simulation schematic diagram and parameters
On the left is Infineon FF600R17 internal structure and heating element schematic diagram, total power: 660W, assuming that the thermal conductive medium is 0.2mm thick 7762 thermal conductive paste.
Temperature simulation sketch of winding

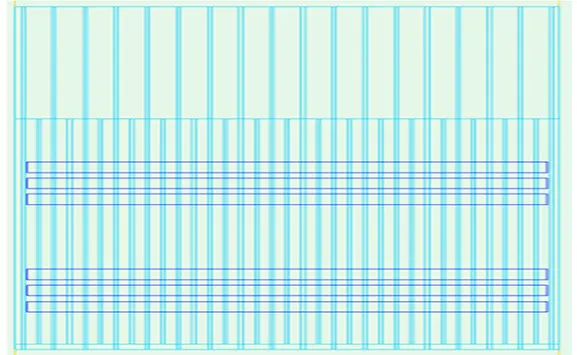

Radiator parameters：
Substrate size：230*320*14mm；
Bonding fin: Thick15mm, High72mm；
Shorter fin: length 210mm，offset 5mm,17fins；
Longer fins: length:320mm, 18fins；
Total 35fins
Heat pipe parameters：
D9.5 Heat pipe；
Embedded tube is embedded on the bottom of heat dissipation base plate; 6pcs，pitch 12mm；
Epoxy resin bonding： K>=4W/m*K
Simulating sketch of velocity diffusion degree of module intake airflow
Minimum airflow：669.5m^3/H Maximum airflow：703.1m^3/H
Simulation results of heat dissipation of converter module model and schematic diagram of fan working point

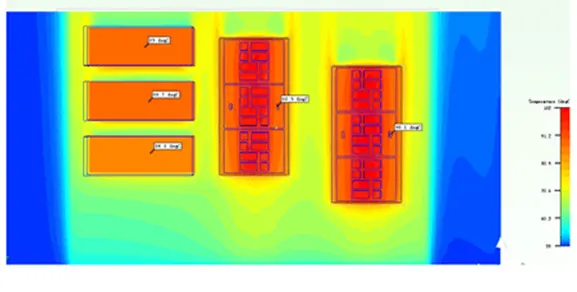

Temperature Diffusion of Cross Section in Inverter Radiator (Minimum Flow Module)
（Minimum airflow value：669.5m^3/H，Pressure value：197.1Pa.）

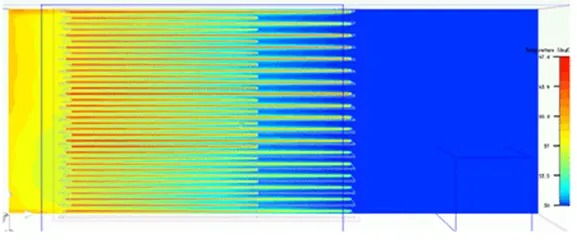

Temperature simulation sketch of winding
Temperature simulation sketch of winding
| H.S Max Temp |
H.S Ma xDT |
Diode case temp (℃) |
IGBT Internal Core Devices Maximum Node Temperature（℃） | Max Junction Temp. | ||||
|---|---|---|---|---|---|---|---|---|
| NTC temp. #1 | NTC temp. #2 | NTC DT | #1 | #2 | ||||
| H.S. with H.P. | 91.6 | 41.6 | 89 88.7 84.8 |
88.9 | 90.1 | 1.2 | 107.7 | 108.9 |
| The ambient temperature is：50⁰C；Suppose 7762 heat conductive paste is used. 0.2mm. | ||||||||
